 XTA DP548 COMPRESSOR
It's a long list to cover, but for those who have never used a 4 Series unit, there is a formidable array of tools available to cater for your creative as well as your control/corrective needs. Each input has a 28 band graphic EQ that can be configured to model either our own GQ600, or older inductor based designs such as the DN27. There are an additional 8 bands of "traditional" parametric EQ on each input. All parametric sections can be reconfigured to many alternate filter behaviors, including the familiar high and low shelves and notch filters, but along with bandpass, elliptic and variable 'Q' shapes, and phase adjustment, in 2 degree steps. |

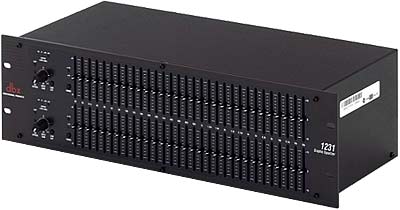

 DBX 1231 EQ
The dbx® 12 Series were designed to meet the needs of the most demanding sound reinforcement environments, while offering the simplicity of straightforward controls. The 1231 provides standard features like dual-channels, 31 1/3 octave bands, ISO frequency centers, +/- 12 dB input gain range, and switchable 40Hz/18 dB per octave low-cut filters, but also includes other insightful features. These include 45 mm faders; selectable +/-6dB or +/-15dB boost/cut range for precise gain adjustments; XLR, barrier strip, and 1/4'' TRS connectors for installation ease; balanced inputs and outputs for quiet operation; and chassis/signal ground lift capabilities for quick hum isolation. The visionary design of the dbx 12 Series makes your job easier. The dbx 12 Series Equalizers were precision engineered to provide years of maintenance-free operation in any application. The magnetically isolated transformer, electronically balanced/unbalanced inputs and servo balanced/unbalanced outputs, RF-filtered inputs and outputs, and power-off hard-wire relay bypass with 2 second power up delay were steps our engineers took to ensure compatibility for all installations. Only the best components were utilized, yielding a 10Hz to 50kHz frequency response, greater than 90dB SNR (ref +4dBu), less than 0.005% THD +Noise (1kHz at +4dBu), and interchannel crosstalk of less than -80dB from 20Hz to 20kHz. All this attention to detail is contained in a 3U steel/aluminum chassis. |
